Overview

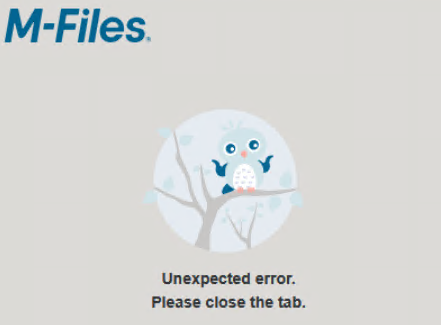

If you are using an M-Files Cloud vault with M-Files Login Service for OAuth (Configuring Vault Authentication with M-Files Login Service.pdf), you may see the following generic error when trying to log in to the vault.
This article applies to the case when the configuration has uppercase letters.
Details
The Audience and Scope need to be verified in the backend, and the check is case-sensitive.
Vault DNS names are usually in lowercase, so using uppercase letters prevents the validation and you get an error without much details (security errors generally must not provide much detail).
Double check your configuration.
Example of configuration that is likely to have issues:
{
"scopes": [
{
"tmpScopeName": "*:Windows",
"configurations": [
{
"name": "MFLoginService.Default",
"tmpProtocol": "oauth",
"assembly": "MFiles.AuthenticationProviders.OAuth",
"oauthSettings": {
"server": {
"AccountClaim": "accountname",
"AuthConfClaim": "authconf",
"SubscriptionClaim": "subscriptionid",
"Audience": "mfiles://My-Vault.cloudvault.m-files.com",
"IdentityProviderMetadata": "https://login.m-files.com/.well-known/openid-configuration",
"ForceDownLevelAccountName": "false",
"AccessTokenType": "JWT",
"PreserveClientSpecificSetting_Scope": "true"
},
"client": {
"Protocol": "OAuth 2.0",
"RedirectUri": "http://localhost/signin-oidc",
"ClientID": "mfclient,0F490484-7E20-496B-B85D-C3D030487D67",
"RedirectUriForWeb": "https://My-Vault.cloudvault.m-files.com/authentication/MFLoginService.Default/read",
"Scope": "openid mfiles://My-Vault.cloudvault.m-files.com offline_access",
"UseIdTokenAsAccessToken": "false",
"UseAccessTokenInWeb": "true"
}
}
}
],
"defaultConfiguration": "MFLoginService.Default"
}
]
}
Solution
Change the uppercase letters for the vault DNS name to lowercase letters, for example:
{
"scopes": [
{
"tmpScopeName": "*:Windows",
"configurations": [
{
"name": "MFLoginService.Default",
"tmpProtocol": "oauth",
"assembly": "MFiles.AuthenticationProviders.OAuth",
"oauthSettings": {
"server": {
"AccountClaim": "accountname",
"AuthConfClaim": "authconf",
"SubscriptionClaim": "subscriptionid",
"Audience": "mfiles://my-vault.cloudvault.m-files.com",
"IdentityProviderMetadata": "https://login.m-files.com/.well-known/openid-configuration",
"ForceDownLevelAccountName": "false",
"AccessTokenType": "JWT",
"PreserveClientSpecificSetting_Scope": "true"
},
"client": {
"Protocol": "OAuth 2.0",
"RedirectUri": "http://localhost/signin-oidc",
"ClientID": "mfclient,0F490484-7E20-496B-B85D-C3D030487D67",
"RedirectUriForWeb": "https://my-vault.cloudvault.m-files.com/authentication/MFLoginService.Default/read",
"Scope": "openid mfiles://my-vault.cloudvault.m-files.com offline_access",
"UseIdTokenAsAccessToken": "false",
"UseAccessTokenInWeb": "true"
}
}
}
],
"defaultConfiguration": "MFLoginService.Default"
}
]
}
